We offer a range of prototyping services based on your needs

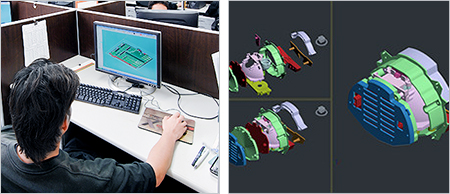

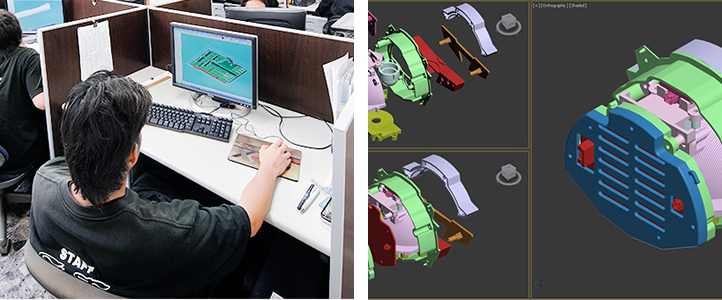

Designing

We support our customers’ manufacturing processes from designing to development. Our designing services include simple sketching, modeling from 2D data, designing assistance, 3D modeling, metal mold designing, reverse engineering, and CNC programming. Available Format: Parasolid, IGES, STL, STEP, and other CAD data

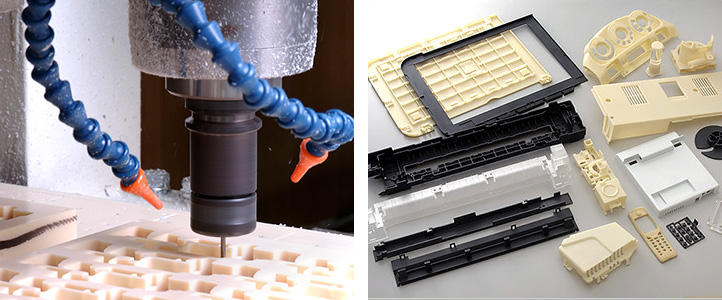

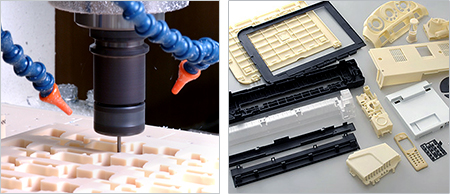

Resin Cutting

Resin Cutting is our specialty, which guarantees very high quality products with strength and precision. We offer the best machining methods after careful examination of 2D/3D data.Treatable Material: ABS, PP, AS, PMMA, PA6, PA66, POM, PC, PPE, PET, PBT, PPS, PTFE, PES, PEEK, LCP, Grass, Carbon reinforced materials, etc

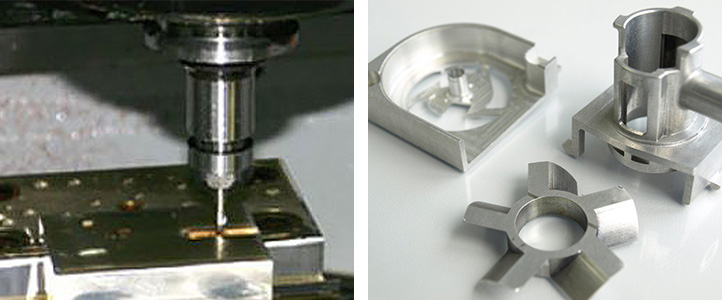

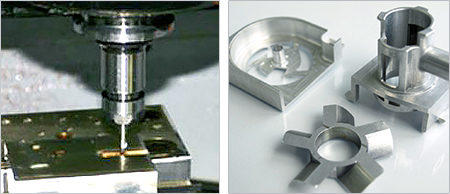

Metal Cutting

We offer high precision machining for a wide range of metal materials such as stainless steel, aluminum, iron, magnesium, copper, and brass.Treatable Material: 1000-7000 series aluminum alloy, ADC, ZDC, all types of iron, all types of SUS, brass, copper, magnesium, titanium, sheet metal materials, and other types of metal.

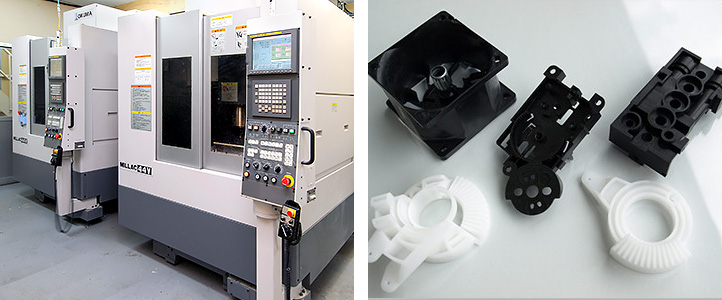

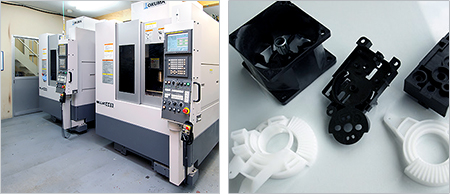

Injection Molding

Testing and inspection are available for mass-production. This process is suited for 50-several thousands of shots.We accept orders from designing to mass production.Treatable Molding Material: ABS, PC, POM, PP, Nylon, Acrylic, Glass reinforced materials, Insert Molding, other molding resin

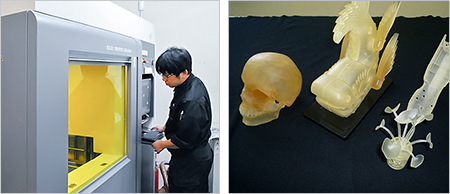

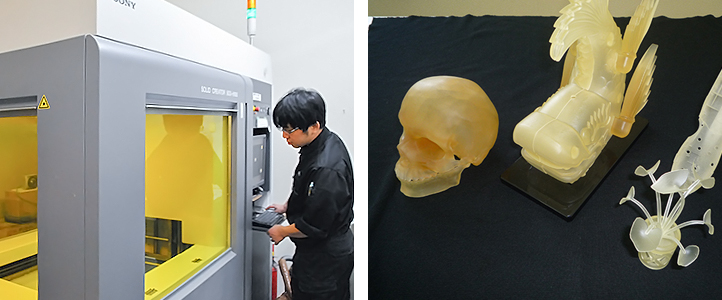

3D Printing

This system enables rapid 3D prototyping using Laminated Object Manufacturing. The finish is sharp as the system generates 3D models from CAD data.Treatable Material: SCR-735 (similar to ABS)3D Printer Material: ABS, PLA

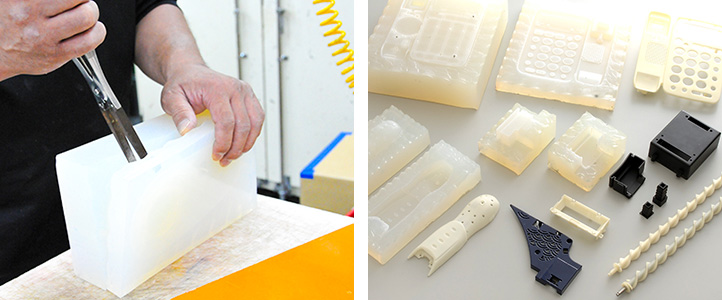

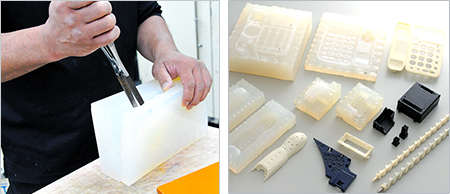

Vacuum Casting

This is a casting method that resin is poured into a silicon mold in a vacuum chamber for replication. This method is suitable for small-quantity productions for which metal cutting is not suited.Treatable Material: ABS-like, PC-like, Acrylic-like, PP-like, high-temperature/flame-retarded resin, Elastomer-like (various hardness), Silicon (various hardness), other materials. *Coloration available.

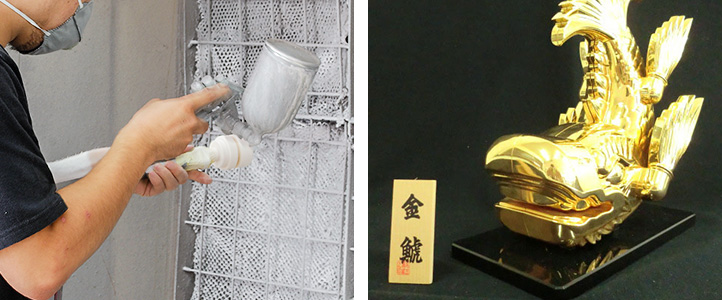

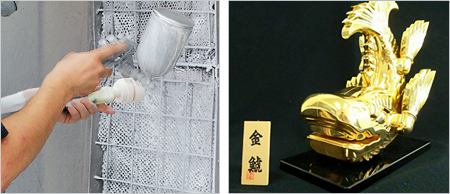

Surface Treatment

Surface treatment is available on resin and metal. Various methods, such as painting, plating, printing, clear-finishing, and mirror-finishing, are available to embody our customers’ concepts and ideas.

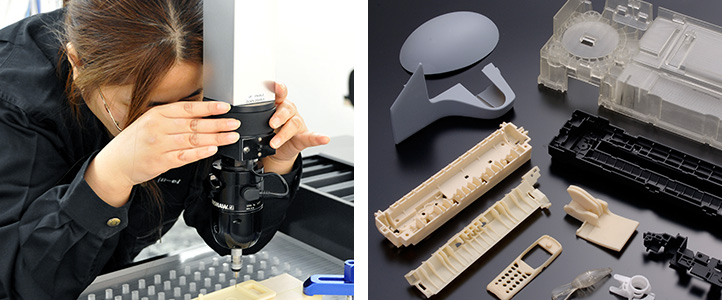

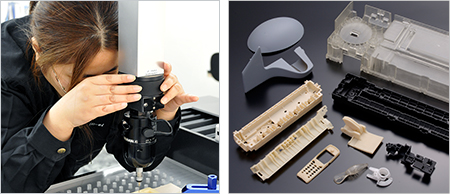

Inspection

All final products are inspected in detail with 3D Coordinate Measuring Machine and other measuring devices. Measuring Device: 3D coordinate measuring machine, Vision measuring system, Pin gauge, Gauge blocks, etc.

ProductManufacturing Case

Cutting
Conceptual model of a Japanese sword that is made of resin, metal, and LED.
3D/UV Printing
Product examples of direct printing on solid objects.
Intricate Cutting
Product example of intricate design cutting on Polycarbonate.

Injection Molding
Product examples of Aluminum injection molding.
Metal Product
Product examples of metal cutting
3D Designing
Design work from modeling to rendering are available for all forms of 3D data.

FacilityFacility list

Machining equipment
Machining center	FANUC	α-T21iF(500×400)	3
Machining center	FANUC	α-T21FL(700×400)	12
Machining center	OKUMA	MILLAC 44V(560×410)	2
Machining center	KITAMURA	C-4(1,000×600)	3
Machining center	KITAMURA	C-3(600×600)	11
Machining center	DOOSAN	DNM650(760×430)	1

Rapid prototyping 3D printer
Rapid prototyping molding machine	SONY(D-MEC)	solid creator SCS-8100	1
3D Printer	Leapfrog	CreatrDuaL	1
ULTRASONIC WASHER	Tokyo Ultrasonic Engineering	PUC-0968	1
Fume hood	DALTON	–	1
Cool air blast drying machine	Tokyo Ultrasonic Engineering	EYELA	1

Vacuum casting equipment
Vacuum casting machine	SOSEY	600×900	3
Vacuum casting machine	SOSEY	700×1,100	1
Drying machine	ISUZU SEISAKUSYO…OTHERS	–	4
Reserve degassing machine	SOSEY	–	1

CAD/CAM equipment
CAD/CAM	JBM	MASTERCAM	20
CAD/CAM	JBM	DESIGNING	3
CAD/CAM	VERO JAPAN	VISI	5
CAD MODELING	Materialise Japan	MAGICS	1
3-DIMENSIONAL VIEWER	C’set	3D Tascal X	2

Measuring devices
3D measuring machine	Mitutoyo	Crysta-PlusM	2
Image measuring machine	Mitutoyo	QUICK SCOPE	1

OTHERS
Sawing plate	Kyowa	Petty Work300	3
Panel saw	SHINX	SZW	1
Band saw	LUXO	U-32	1
Drilling saw	IRON WORKS	ADP-360	1
NC auto-engraving machine	Sakazaki	Noriko(550×400)	2
Engraving machine	Sakazaki	–	5
Lathe	–	RUNMASTER	1
Blast Cabinet	ASCON	B-1	1
Blast Cabinet	ASCON	BS-2	4
Tapping saw	KIRA	KRT-10	1

Company
ProfileProfile

Company Name	SINEI MODEL CO.,LTD
Address	Head Office 4－52－12 Dainichi-cho, Moriguchi-shi, Osaka, Japan
Established	Feb, 1986
President&CEO	Kazu(hiro) Yakumaru
employee	80
